Expose how BAD quality insulation system Make?
Update: 2015-12-15 09:54 View:
This is a prefix in the development of housing prices in Shenyang high-rise building, a large area off the wall appeared
in the Western Hills area. Of course, a problem occurs insulation system, to scientifically analyze the reasons for its formation,
the conclusion that can not be easily materials, construction, or any other reason, but on-spot survey, scientific analysis of
the causes.We look at this building has cracks in exterior latex "aspect terraced rice paddies" of the crack from the outside
and inside.
Protective layers and layers of plaster finishes have more than 150 square meters off
Falling plaster on the inside was pink, the residual thermal insulation material, visible on the fracture surface of the insulation
material, touching the exposed insulation layer, the feeling has been pulverized.
At the top level, we have a close look at some of the sheet crack, warpage.
Since the insulation board and the protective surface layer are cracks, then what is the key cause lead to the result? A
protective surface cracking, water, leading to cracking of the insulation board, insulation board or cracking resulting protective
surface cracking, or no relationship between the two? From the graph it seems that we can conclude is that tension plate
cracking, resulting protective surface cracking.We found mortar bonded insulation board and the place has become a dark
color, touch found the site has been chalking discoloration, loss of mechanical strength. But not discolored parts still have a
certain hardness.
Since the crack insulation board, resulting in a fracture interface layer, alkaline mortar began streaming acidic erosion
insulation board. Cracking insulation materials has led to cracking of the protective surface layer, thereby enabling the
insulation system water, moisture and light Xishan wall exacerbated progress Plastering mortar to insulation material
erosion. So, together with the quality of the inevitable accidents occurred.
in the Western Hills area. Of course, a problem occurs insulation system, to scientifically analyze the reasons for its formation,
the conclusion that can not be easily materials, construction, or any other reason, but on-spot survey, scientific analysis of
the causes.We look at this building has cracks in exterior latex "aspect terraced rice paddies" of the crack from the outside
and inside.

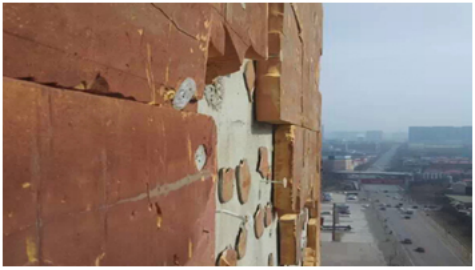

Photographed in the top

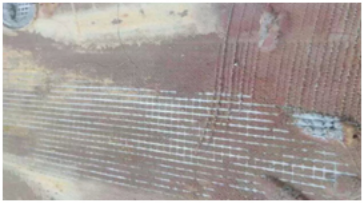

The protective layer and the gap has been facing layer tear
Protective layers and layers of plaster finishes have more than 150 square meters off

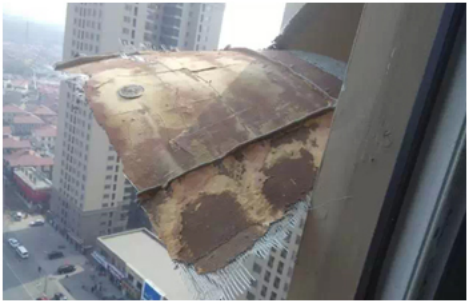

A closer look at shedding interface

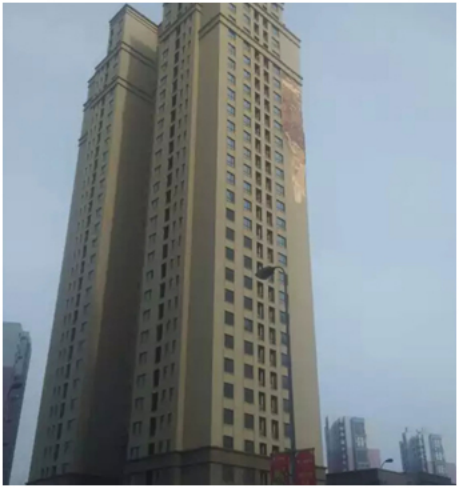

Remote observation off the wall
Falling plaster on the inside was pink, the residual thermal insulation material, visible on the fracture surface of the insulation
material, touching the exposed insulation layer, the feeling has been pulverized.

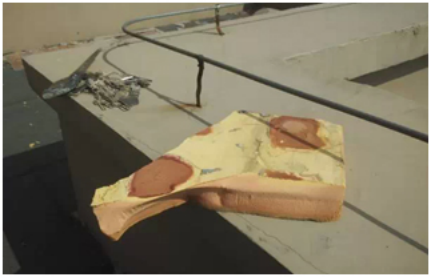

Sticking plaster above the fracture surface insulation materials

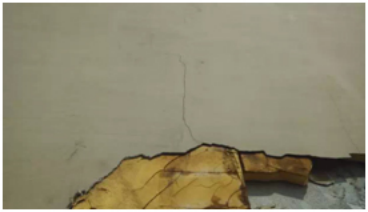

At the top level, we have a close look at some of the sheet crack, warpage.
Since the insulation board and the protective surface layer are cracks, then what is the key cause lead to the result? A
protective surface cracking, water, leading to cracking of the insulation board, insulation board or cracking resulting protective
surface cracking, or no relationship between the two? From the graph it seems that we can conclude is that tension plate
cracking, resulting protective surface cracking.We found mortar bonded insulation board and the place has become a dark
color, touch found the site has been chalking discoloration, loss of mechanical strength. But not discolored parts still have a
certain hardness.
Since the crack insulation board, resulting in a fracture interface layer, alkaline mortar began streaming acidic erosion
insulation board. Cracking insulation materials has led to cracking of the protective surface layer, thereby enabling the
insulation system water, moisture and light Xishan wall exacerbated progress Plastering mortar to insulation material
erosion. So, together with the quality of the inevitable accidents occurred.
