Expandable Polystyrene For EPS Foam Helmet

Update::2020-12-29 15:16 View:
    EPS(Expandable Polystyrene) is a lightweight, rigid, plastic foam insulation material produced from solid particles of polystyrene. Expandsion is achieved by virtue of small amounts of pentane gas dissolved into the polystyrene base material during production.The gas expands under the action of heat, applied as steam, to form perfectly clesed cells of EPS.

How do we classfiy EPS Material?

Regular Grades - High Expansion, Medium Grade, Fast Cycling, Colorful beads
Specification
P301 P302 P303 P401 P501
Beads Size mm 1.00-1.60 0.85-1.25 0.70-0.90 0.50-0.80 0.40-0.60
Vol.Cont % 7.81 7.66 7.39 7.09 6.82
H2O % 0.45 0.57 0.38 0.51 0.37
Avg. size mm 1.25 1.01 0.81 0.63 0.53
Sieving ≥95% 98.0 100.0 100.0 100.0 99.8
Result (g/l) 12.50 13.50 14.33 19.67 24.00
DENSITY RANGE Max(I) (g/l) 11.00 13.11 14.50 18.67 20.20
Min(I) (g/l) 12.50 14.28 17.67 20.00 25.00
Remark ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER

Flame Retardant - High Ratio Flame Retardant, Low Pentane Flame Retardant
Specification F301 F302 F303 F401
Beads Size mm 1.00-1.60 0.85-1.25 0.70-0.90 0.50-0.80
Vol.Cont % 6.85 6.80 6.66 6.27
H2O % 0.95 1.12 1.25 1.26
F.M % ≤0.10 ≤0.10 ≤0.10 ≤0.10
Avg. size mm 1.32 1.01 0.80 0.63
PRE-EXPENSION DENSITY 12.0~14.0 14.0~16.0 15.0~18.0 18.0~25.0
Sieving ≥95% 95.0 95.0 95.0 95.0
Result (g/l) 13.67 15.18 17.00 23.22
DENSITY RANGE Max(I) (g/l) 12.58 14.58 16.67 19.00
Min(I) (g/l) 14.00 16.00 18.00 24.33
Oxygen Index ≥30 ≥30 ≥30 ≥30
Remark ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER

Advantages

Good fire resistant capability, low thermal conductivity, low energy consumption; they are mainly applicable to higher-level
thermal insulation materials of buildings.
1. First class production process worldwide
2. Intelligent DCS
3. Advanced equipments
4. Superior human resorces
5. Quality assurance: ERP and ISO9002

Applications

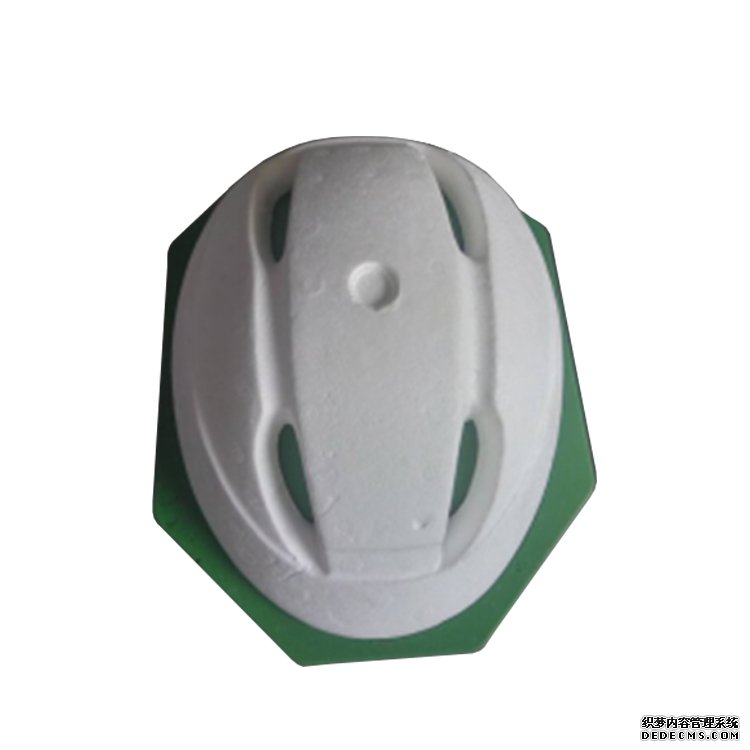

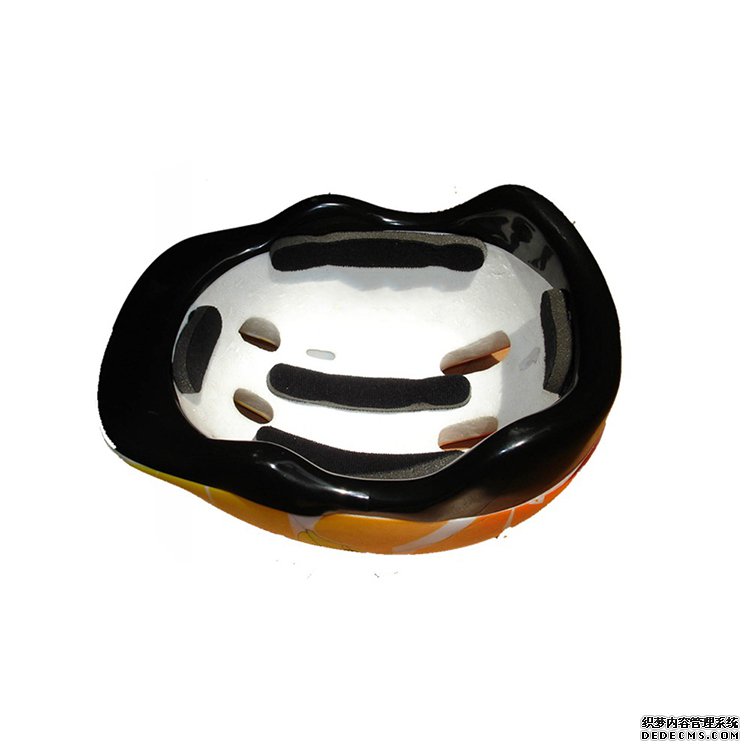

EPS Foam Helmet
